Aircon Remote and Thermostat Troubleshooting Guide

A blank remote display or an unresponsive aircon on a hot Singapore afternoon triggers immediate concern. Before paying for a full repair service call, most controller faults take less than five minutes to diagnose at home with no technical background required.

This guide walks through every common remote and thermostat issue, from dead displays to temperature mismatches, with exact steps to isolate the problem.

Quick triage: identify the fault

Blank display (remote shows nothing)

Almost always a power issue, even with relatively recent batteries. A blank screen means the circuit board receives zero voltage.

Check for corrosion on the battery compartment contacts first. White residue on the metal springs blocks current flow. Clean gently with a cotton swab dipped in rubbing alcohol.

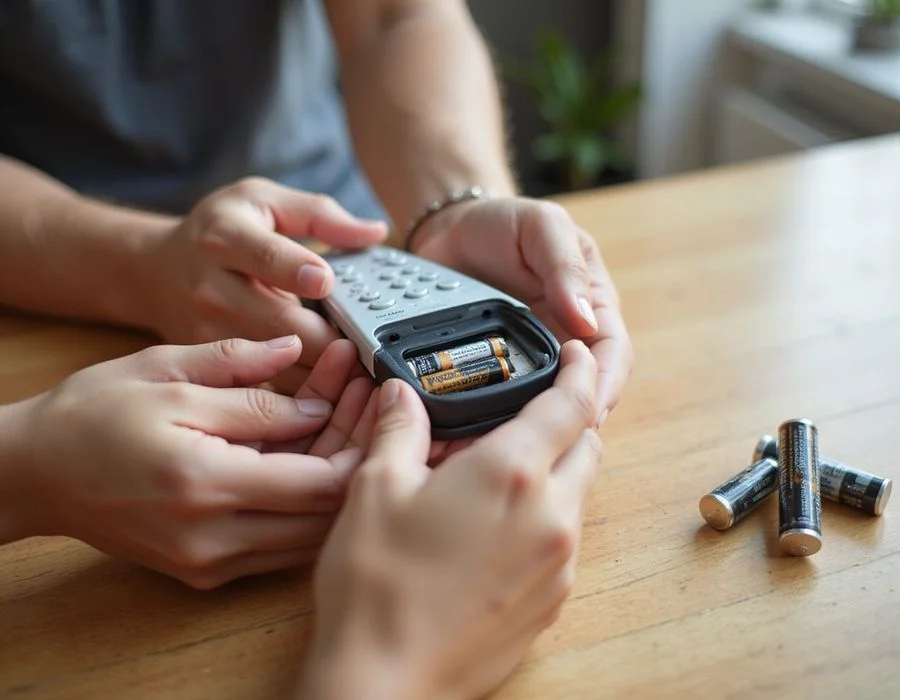

Battery checklist:

• Replace both AAA 1.5V batteries with fresh alkaline versions
• Confirm positive and negative alignment
• Ensure springs fully contact the battery terminals

Fresh batteries solve this problem roughly 90% of the time. If the display stays blank with new cells, the remote PCB is permanently faulty and needs replacement.

Display works but aircon does not respond

The display functions normally while the infrared emitter may be broken. Test with the phone camera method:

1. Open the camera app on your smartphone
2. Switch to the front-facing selfie camera (rear cameras on modern iPhones filter infrared)
3. Point the top of the remote at the camera lens from about 5cm away
4. Press the power button and watch for a purple or red flash on screen

If the flash appears clearly, the remote signal works. Check that no curtains or furniture block the line of sight to the indoor unit, and stand within three metres.

If nothing flashes on camera, the infrared emitter has failed. Try another set of fresh batteries to rule out a defective batch. A confirmed emitter failure means the remote needs replacement.

Replacement remote options

Original brand remote

The exact model ensures full access to every timer, fan speed, and special function. Popular Singapore models include the Daikin ARC433 series and Mitsubishi BRC units.

Current 2026 prices: S$10 to S$40 for basic models through Lazada or Shopee. Official brand service centres charge S$40 to S$90 depending on the series.

Universal remote

Generic controllers contain hundreds of pre-programmed infrared codes matching most brands. The Chunghop K-1028E is widely available at Singapore hardware shops and Sim Lim Square for S$10 to S$20.

Universal remotes handle power, temperature, mode, and fan speed. They typically lack advanced scheduling, self-clean functions, or brand-specific purification modes.

What iCare Aircon carries

Our service vehicles stock universal remotes for immediate relief during callouts. Waiting days for a specific part in Singapore’s heat is not practical for families with young children or elderly residents. We source original brand remotes within 24 to 48 hours through our supplier network.

Temperature and behaviour problems

Sometimes the remote works fine but the indoor unit behaves strangely. These issues point to hardware or sensor problems rather than controller faults.

Unit runs but does not reach set temperature

Possible causes:

1. Thermostat sensor drift: The internal sensor reads incorrectly
2. Cooling capacity loss: See our aircon not cold guide for detailed diagnosis
3. Undersized unit: Insufficient BTU for the room
4. Wrong mode selected: Fan or Dry mode instead of Cool. Look for the snowflake icon on the display

Short cycling (frequent on/off)

The system hits the target temperature rapidly, switches off, then restarts minutes later. This often results from the thermistor sitting too close to the cold air discharge, giving a false reading. Setting the temperature unrealistically low also causes unnecessary compressor strain. The NEA recommends 25 degrees Celsius for balancing comfort with energy efficiency.

Set temperature does not match actual room temperature

Your remote displays 22 degrees while a desk thermometer reads 28 degrees. The remote shows the target setting, not the measured temperature. This discrepancy confirms a fault with the return air sensor (thermistor) inside the indoor unit. A technician tests this component with a multimeter and replaces it if readings are outside tolerance.

Smart app and WiFi control issues

Most modern units sync with apps like Daikin Mobile Controller, MELCloud, or Panasonic Comfort Cloud. Connectivity drops typically follow WiFi router upgrades because many aircon modules require a dedicated 2.4GHz band. The Daikin app specifically needs your router broadcasting on channels 1 through 11.

Common fixes:

• WiFi lost: Re-pair the unit to the updated router
• App outdated: Check for 2026 updates on the App Store or Play Store
• Device offline: Verify the indoor unit has power and internet is active
• Conflicting commands: The physical remote overrides the app when both send instructions

Always keep the physical remote accessible. The app is a convenience feature, not the primary control path.

When the receiver board is faulty

A faulty infrared receiver PCB inside the indoor unit ignores all remote signals. Confirm this by testing the manual override: every wall-mounted unit has a hidden emergency button beneath the front panel.

Signs of receiver failure:

• A brand new remote with fresh batteries triggers no acknowledgement beep
• Phone camera test confirms the remote sends a clear infrared flash
• The manual emergency button successfully powers the unit on and off

If the manual button works but the remote fails, the receiver PCB needs replacement.

Pre-service diagnostic checklist

Step	Action
1. Battery check	Swap both AAA batteries for fresh ones, verify alignment
2. Signal test	Use phone selfie camera to check for infrared flash
3. Power supply	Confirm indoor unit LED lights up (unit has power)
4. Proximity	Aim remote directly at receiver from under 3 metres
5. Mode check	Ensure display shows Cool mode snowflake icon
6. Manual override	Lift cover and test emergency button on indoor unit

Typical 2026 repair costs

Replacement	Estimated cost (SGD)
Universal remote	S$20 to S$40
Original brand remote	S$60 to S$120
Internal thermostat sensor	S$100 to S$180
Infrared receiver PCB	S$120 to S$250 (varies by brand)

WhatsApp iCare Aircon with your aircon brand and which diagnostic step failed. Sharing these results speeds up the repair process and helps our team arrive with the correct parts.
